Anti-Bacterial Aluminium Honeycomb Panel For Cleanroom Wall Ceiling-CHAOEN

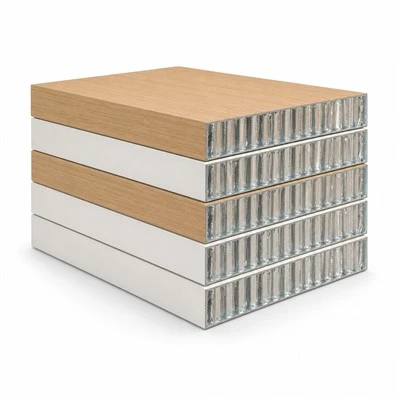

CHAOEN Cleanroom Wall and Ceiling Panel is a flush modular envelope system built from a 50 mm all-aluminium honeycomb panel - two coated aluminium skins bonded to a hexagonal aluminium foil core - joined with concealed tongue-and-groove profiles so the finished wall reads as one continuous surface with no exposed fixings. Every internal junction is closed with a radiused coved profile, so there is no square corner for residue to sit in and a wall can be wiped down in a single pass. Because both the skins and the core are aluminium, the panel does not shed fibres, does not absorb moisture and does not add combustible material to the room. The system is supplied complete: panels, ceiling, coved profiles, doors, vision windows, pass-through hatches, sealed lighting and HEPA diffuser modules all come from one source and share one dimensional grid.

A wall that does not shed. Fibre-cored and mineral-cored panels give up particles at every cut edge and fixing point. Both skins and the core here are aluminium, coated and sealed, so the surface stays inert in a controlled environment rather than becoming a particle source itself.

Flush face, no ledges. Panels join on a concealed tongue-and-groove profile with no visible screws, cover strips or protruding trims. There is no horizontal ledge for dust to settle on, which is the practical difference between a wall that passes a routine inspection and one that does not.

Coved at every junction. Wall-to-floor and wall-to-ceiling are closed with radiused coved profiles, and internal corners are formed rather than butted. A cloth or a mop head follows the curve continuously - nothing is left in an angle that cannot be reached.

Built for disinfectant, not just for water. The coated aluminium face is specified to take routine disinfectant wipe-down and washdown cleaning without the surface chalking or the joint sealant lifting. Tell us the cleaning agents in your SOP and we will confirm the coating.

Non-combustible envelope. The panel is A2 class with zero formaldehyde emission. In a production cleanroom the wall and ceiling are the largest continuous surfaces in the space, so keeping combustible core material out of them removes a significant fire load from the room.

One dimensional grid for the whole envelope. Wall panels, ceiling panels, doors, vision windows, pass-through hatches, sealed LED panels and HEPA diffuser modules are all built to the same module, so the ceiling grid lines up with the wall joints and the room sets out cleanly.

Dry, fast, low-disruption installation. Panels slide into base and head track and interlock as they go, so a room shell goes up without wet trades, plaster dust or drying time. This matters on refurbishment work where the neighbouring production area is still running.

Cut to your drawings, numbered for site. Panels are produced to project dimensions and numbered by position with a setting-out reference, so installers are not cutting panels on site inside a space that is about to be cleaned and validated.
