Product Parameter Table
|
Brand |
CHAOEN |
|
Product Name |
Aluminium Honeycomb Interior Wall Panel |
|
Product Type |
Lightweight Sandwich Wall Panel for Interior Decoration |
|
Panel Thickness |
7 / 8 / 9 mm |
|
Panel Width |
1220 mm (Custom Width Available) |
|
Panel Length |
Up to 4000 mm, Cut to Project Dimensions |
|
Skin |
0.5 mm Aluminium Alloy - Both Faces |
|
Honeycomb Core |
Aluminium Foil Hexagonal Honeycomb, Cell Size 6 mm |
|
Panel Weight |
Approx. 4.5-5.5 KG / Square Meter |
|
Surface |
Decorative Wood Grain, Stone & Solid Colour Finish |
|
Edge |
Rounded Corner, Aluminium Skin Wrapped Edge |
|
Flatness |
Super Flat Large Format, No Buckling or Warping |
|
Fire Rating |
A2 Class Non-Combustible |
|
Formaldehyde Emission |
Zero |
|
Moisture Behaviour |
All-Aluminium Build, Does Not Absorb Moisture or Warp |
|
Installation |
Concealed Mounting Clip, Hook-On Dry Installation |
|
Application |

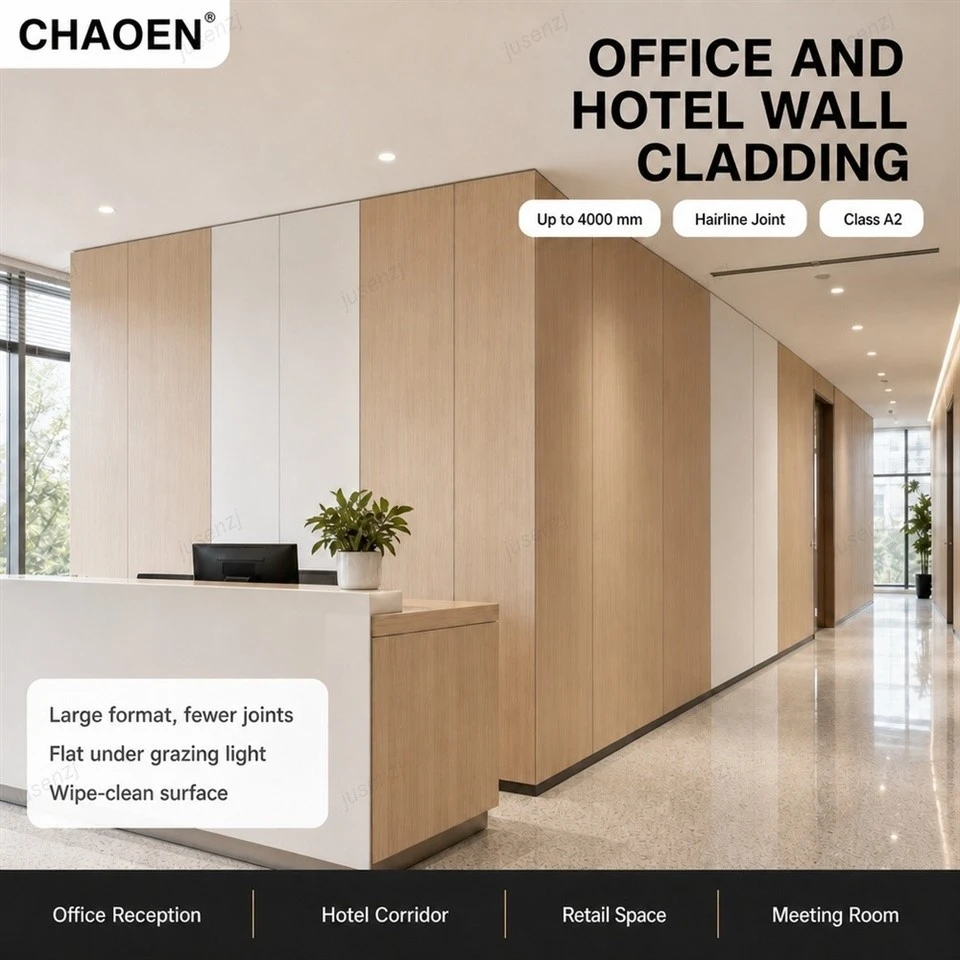

Office Reception, Hotel Corridor, Retail Space, Meeting Room, Residential |
|
Use |
Large-format interior wall cladding with hairline joints |
|
MOQ |
500 Square Meter / Each Colour or Finish |
|
Sample |
Free Sample Available |
|
Payment |
T/T, L/C, Western Union, Trade Assurance |
|
Packing |
Protective Film + Edge Protection + Carton + Wooden Crate |
|
Certification |
CE / ROHS |
Product Introduction

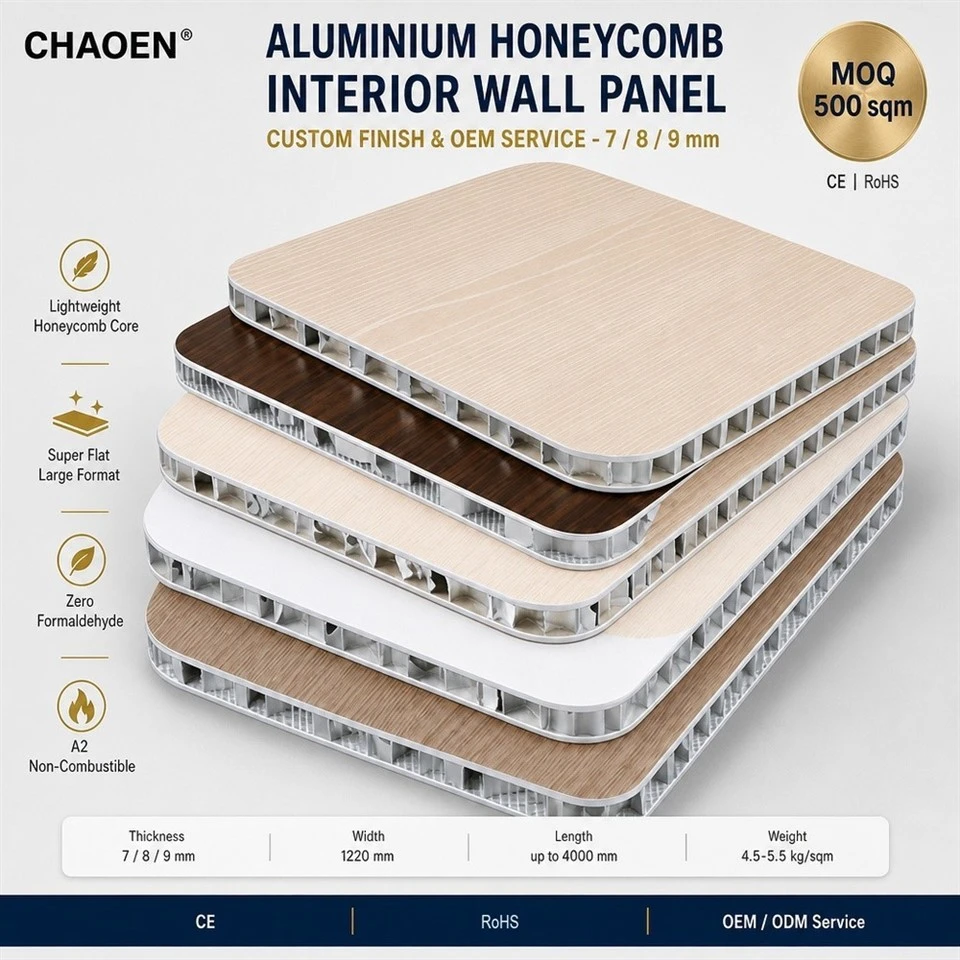

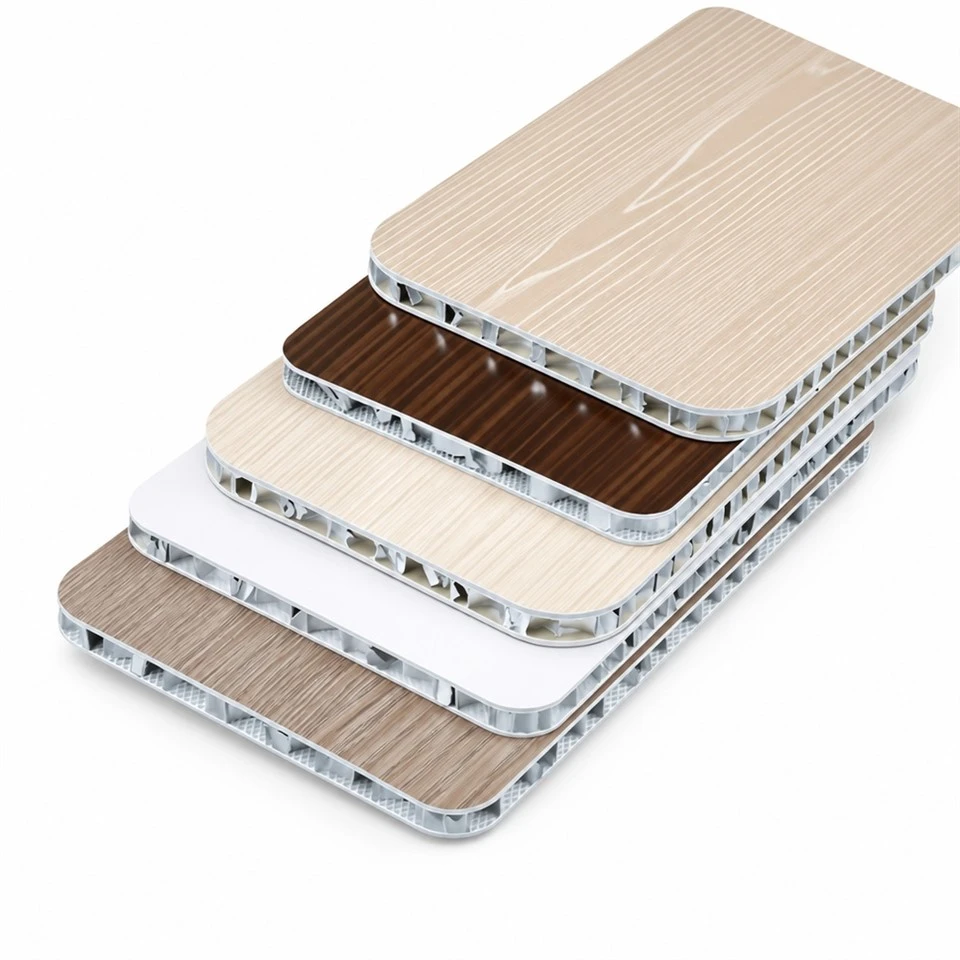

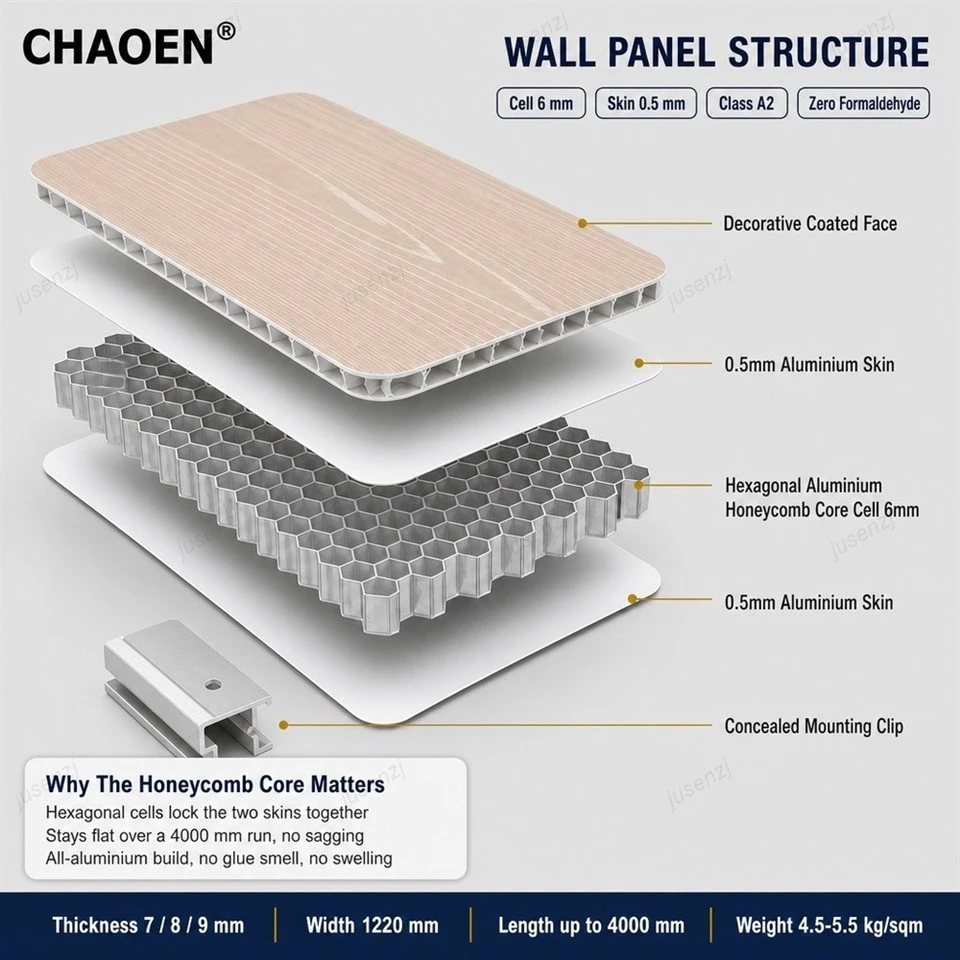

CHAOEN Aluminium Honeycomb Interior Wall Panel bonds two coated aluminium skins to a hexagonal aluminium honeycomb core, giving a large-format wall panel that stays dead flat at only 4.5-5.5 kg per square meter. One worker can carry and position a full panel, which keeps installation fast on tight fit-out programmes.
The panel is all aluminium, so it contributes zero formaldehyde, does not absorb moisture and carries an A2 non-combustible rating. Panels are cut to project dimensions and hook onto concealed mounting clips, producing a flush wall with hairline joints and no visible fixings.
Detailed Description
Flat at large format. The honeycomb core resists the bowing and oil-canning that thin sheet linings show across wide spans, so long walls read as one clean plane under grazing light.
Light enough for one-person handling. At 4.5-5.5 kg per square meter the panel cuts lifting equipment and labour on site compared with stone, glass or thick composite linings.
Zero formaldehyde, all aluminium. There is no timber, particle board or paper liner inside, so the wall adds nothing to indoor formaldehyde levels and no fuel load to the space.
A2 non-combustible. The aluminium skin and aluminium core meet A2 class requirements for commercial and public interiors.
Dry hook-on installation. Panels mount on concealed clips rather than wet adhesive, so a wall can be installed quickly, adjusted for alignment and a single panel removed later if needed.

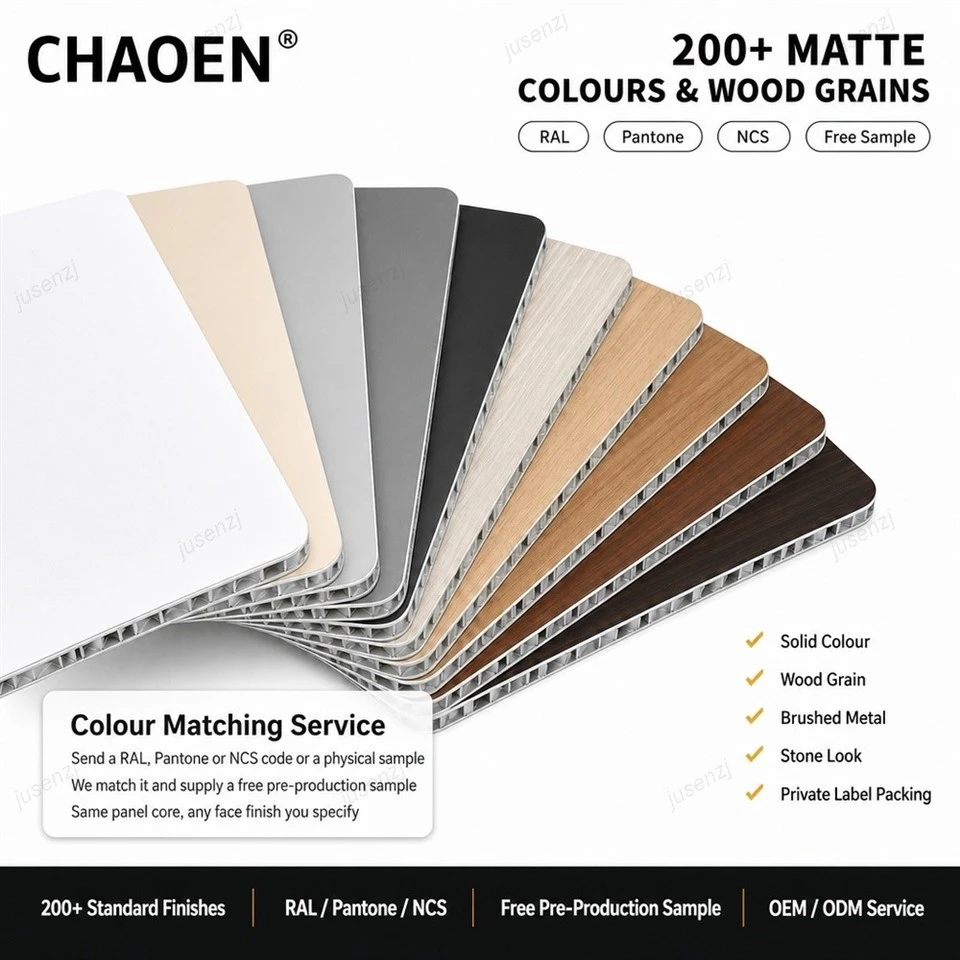

Finish range for design matching. Wood grain, stone and solid colour finishes are available, with custom colours matched to RAL, Pantone or NCS references for project specification.
FAQ
Q1: What thicknesses and sizes are available?
A1: Thickness 7, 8 and 9 mm; standard width 1220 mm with lengths up to 4000 mm, cut to your project dimensions.
Q2: How heavy is the panel?
A2: Approximately 4.5-5.5 kg per square meter depending on thickness, light enough for one-person handling on site.
Q3: How are the panels installed?
A3: Panels hook onto concealed aluminium mounting clips fixed to the wall - a dry installation with hairline joints and no exposed fixings.
Q4: Will large panels stay flat?
A4: Yes. The hexagonal honeycomb core keeps the panel rigid and dimensionally stable, so large formats do not bow or warp.
Q5: What is the fire rating?
A5: A2 class non-combustible, with zero formaldehyde emission, suitable for commercial and public interiors.
Q6: Can the panel be used in humid areas?
A6: Yes. The panel is all aluminium and does not absorb moisture, swell or support mould growth.
Q7: Which finishes can you supply?
A7: Wood grain, stone and solid colour finishes, with custom colours matched to RAL, Pantone or NCS references.
Q8: What is the MOQ and can I get samples?
A8: MOQ is 500 square meters per colour or finish, and free samples are supplied before order.
