Product Introduction

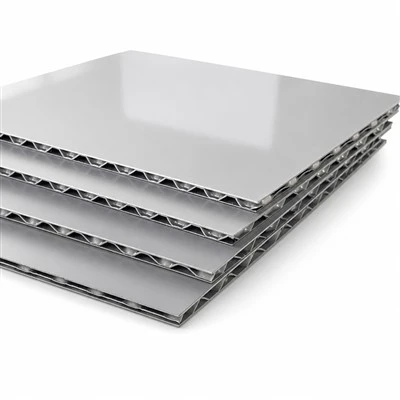

Anodized Aluminum 3D Panel uses flat anodized metallic faces around a visible corrugated core construction. Its key distinction is the real three-dimensional edge structure, not an added pattern on the outer surface, allowing buyers to inspect both the smooth face and the panel build from a representative sample. The approved sample becomes the reference for edge quality, surface tone and bulk-order consistency.
Technical & Commercial Data
|
Parameter |
Specification |
|
Product Title |
Anodized Aluminum 3D Panel |
|
Material |
Aluminum / aluminum alloy |
|
Visible Profile |
Flat Face / Corrugated Core |
|
Surface Finish |
Anodized metallic finish |
|
Forming Route |
Cutting and Edge Processing |
|
Color Options |
Silver, champagne, bronze, graphite gray and titanium black |
|
Custom Processing |
Cut-to-size service available after drawing review |
|
Application |
Interior wall, ceiling and architectural feature areas |
|
Sample |
Available on request; final surface and construction confirmed by sample |
|
MOQ |
500 Square Meters / Each Color or Finish |
|
Certifications |
CE, RoHS |
|
Performance Data |
Relevant test report available on request |
Design & Application Description
The exposed edge shows repeated corrugated or fluted channels between thin outer skins. This construction should remain recognizable in product photographs, sample approval and inspection records. The outer face is deliberately plain, smooth and flat; it must not be described or illustrated as a wave panel, diamond panel or ribbed panel. When cut edges remain visible in a project, the buyer and fabricator should agree how those edges will be finished or concealed before production.
For procurement, the sample review should cover surface cleanliness, reflection uniformity, corner condition, core alignment and the consistency of the stacked panels. Silver, champagne, bronze, graphite gray and titanium black can be discussed as visual directions, subject to physical sample confirmation. Drawing review can also address module size, cutting sequence, identification labels, packaging and pallet arrangement. Using one common product title helps the design team, buyer and factory refer to the same flat-faced corrugated-core construction.
Possible interior uses include elevator lobbies, commercial walls, hotel public areas, showrooms and other flat modular surfaces. Project engineers remain responsible for the supporting system, fixing details, joints and local requirements. In specifications and approval documents, the product should retain the same flat face and visible corrugated edge shown in the source material. CE and RoHS are the only certifications displayed; any additional performance requirement must be supported by the applicable report for the ordered construction.
Project Supply Workflow
1. Drawing Review: Share module sizes, finish, quantity and application area.
2. Structure & Color Confirmation: Review a representative panel sample before bulk production.
3. Processing & Inspection: Cutting, edge checks and surface inspection follow the confirmed order.
4. Packing & Identification: Project labels and private-label packing can be arranged on request.
FAQ
Q: What identifies this construction?
A: A flat metallic face combined with the visible corrugated internal edge structure.
Q: Is the corrugated structure a surface pattern?
A: No. It is inside the panel and appears only at an exposed edge.
Q: Can exposed edges be processed?
A: Edge-treatment requirements can be reviewed from the project drawing.
Q: Why is sample approval important?
A: It confirms the face, core appearance, color and edge condition before bulk supply.
Q: Which certifications are listed?
A: CE and RoHS only.
