Specifications
|
Product Name |
Embossed Honeycomb Panel |
Brand |
CHAOEN |
|
Material |
Aluminum3003.5052 |
Color |
Customized |
|
Fire Resistant Level |
A1 |
Temperature Resistance |
-55°C~220°C |
|
Weight |
2-5KG/Square Meter |
Flexural Strength |
95%W 5%N |
|
Use |
Building Curtain Wall/Interior Decoration, Aerospace, New EnergyVehicle Battery Packs, Industrial Equipment Enclosures, Furniture Manufacturing |
Standard Size |
1220*2440mm (Customized) |
|
MOQ |
200 Square Meter/Each Color |
Sample |
Free sample available |
|
Payment |
T/T, L/C, other |
Packing |
As customer required |
Four bold colors, one tactile embossed texture, and a full aluminum honeycomb core -- our Colored Embossed Honeycomb Panel OEM brings visual energy and structural performance together in a single composite panel that is Soundproof, Moisture-proof, and UV Resistant, making it the standout specification choice for retail interiors, exhibition displays, creative office fit-outs, and any project where a flat solid-color panel simply does not make enough of a statement. The embossed dot texture adds a three-dimensional surface quality that catches light differently at every angle, turning an ordinary wall or ceiling panel into a visual feature -- while the aluminum honeycomb core keeps the panel rigid, flat, and durable enough to perform in both indoor and semi-outdoor applications without fading, warping, or losing surface integrity over time. Free samples available, MOQ just 100 sheets -- scroll down for color options, emboss patterns, and factory-direct pricing.
Colored Embossed Honeycomb Panel OEM -- Embossed Texture, Soundproof, Moisture-Proof & UV Resistant
Our Colored Embossed Honeycomb Panel OEM is a high-impact composite decorative panel designed for buyers who need surface panels that go beyond flat color -- delivering a tactile embossed dot texture, vivid color saturation, and full aluminum honeycomb core performance in a single OEM-configurable sheet. Available in a warm color spectrum including deep red, burnt orange, golden yellow, and rich brown, the panel face commands visual attention on feature walls, retail display backgrounds, exhibition booth cladding, creative office interiors, and any application where surface character and color energy are part of the design brief.

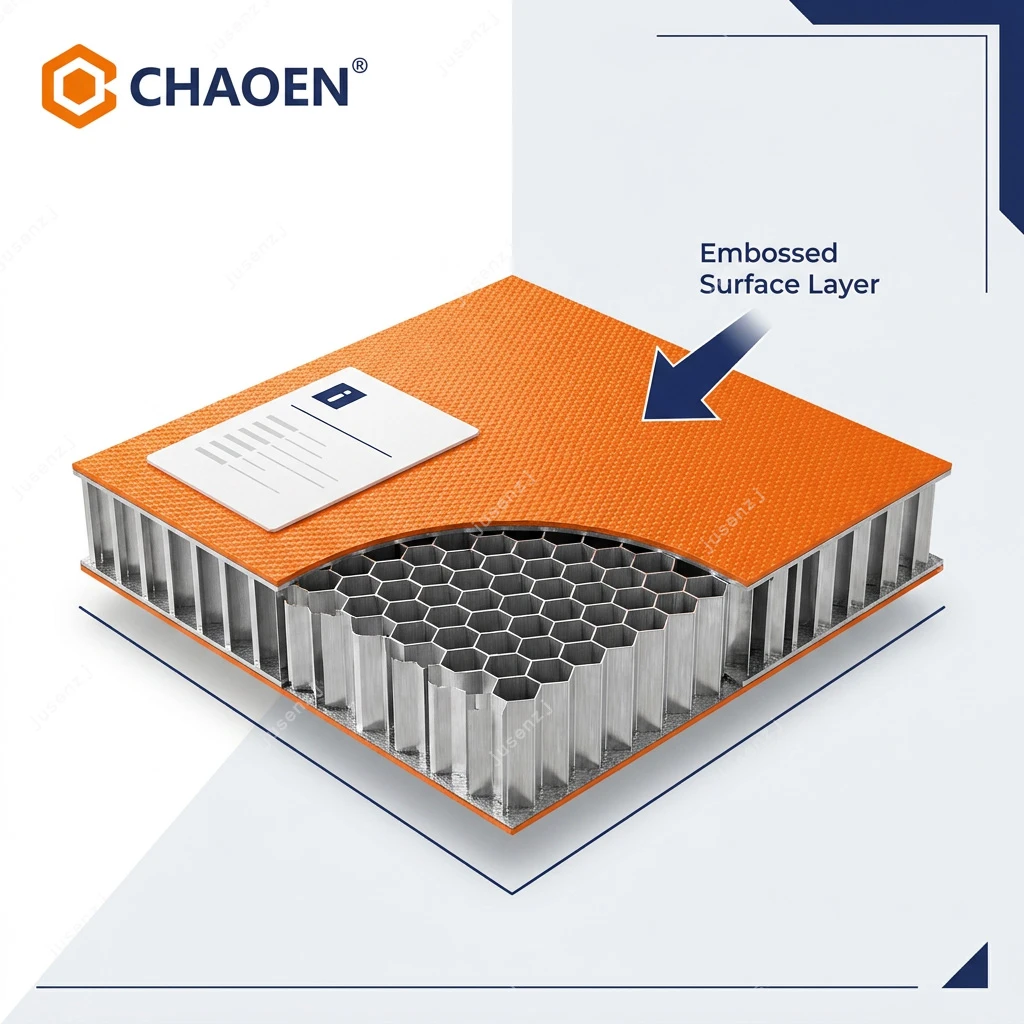

The embossed texture is pressed directly into the aluminum face sheet during manufacturing, creating a durable three-dimensional surface pattern that will not peel, scratch away, or flatten under normal handling and installation conditions. The texture catches and scatters ambient light across the panel face, producing a dynamic visual depth that flat painted or laminated surfaces cannot replicate -- a detail that distinguishes premium retail and hospitality interior fit-outs from standard cladding installations.
Four certified performance properties support specification across indoor and semi-outdoor applications: Soundproof performance through the honeycomb cell matrix for acoustic comfort in retail and office environments; Moisture-proof sealed construction for humidity-variable or semi-exposed installations; and UV Resistant coating that maintains color saturation and surface finish quality under prolonged light exposure without fading or chalking.
Custom colors, emboss patterns, panel dimensions, and core thickness available via OEM. MOQ: 100 sheets. Free samples available -- contact us for color swatches, technical specifications, and a factory-direct quotation.
Aluminum Honeycomb Panel FAQ
Q: 1. What is an aluminum honeycomb panel?
A: An aluminum honeycomb panel is a lightweight, high-strength composite panel made of two aluminum skin sheets bonded to an aluminum honeycomb core under high temperature and pressure. The hexagonal honeycomb structure provides an excellent strength-to-weight ratio and superior flatness. Common skin materials include 3003 and 5052 aluminum alloy, with surface finishes such as PVDF coating, PE coating, or anodizing.
Q: 2. What are the standard specifications?
A: Common specifications:
• Total thickness: 6mm, 10mm, 15mm, 20mm, 25mm, 30mm (customizable)
• Skin thickness: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
• Core cell size: 6mm, 8mm, 10mm, 12mm
• Standard panel size: 1220×2440mm, 1500×3000mm (max 2000×6000mm)
• Core density: 60–120 kg/m³
• Surface finishes: PVDF, PE, anodizing, wood-grain transfer
Q: 3. What is the minimum order quantity (MOQ)?
A: The typical MOQ is 50–100 square meters, depending on specifications and surface finish. Custom or non-standard sizes may require adjusted MOQs. Larger orders enjoy better unit pricing. Please provide your specific size and quantity requirements for an accurate quotation.
Q: 4. Where are aluminum honeycomb panels used?
A: Common applications:
• Building facades: high-rise curtain walls, airports, exhibition centers
• Interior decoration: ceilings, partitions, elevator interiors, wall cladding
• Transportation: train interiors, metro station cladding, marine interiors
• Industrial: cleanroom panels, equipment housings, machine tables
• Furniture: high-end cabinet panels, display stands, signage
• Aerospace: aircraft interior panels, overhead bins
Q: 5. What are the advantages over solid aluminum panels?
A: ① Lighter weight: only 1/3 to 1/5 the weight of solid aluminum at the same thickness
② Superior flatness: honeycomb core ensures rigidity and resists deformation
③ Sound & heat insulation: air pockets in the core provide good insulation
④ High wind-load resistance: ideal for large-area curtain walls
⑤ Lower installation cost: lightweight means easier transport and faster installation
⑥ Eco-friendly: 100% recyclable aluminum, meeting green building standards
Q: 6. What surface finishes are available?
A: • PVDF (Fluorocarbon): best weather resistance, 25+ year lifespan, recommended for exterior walls
• PE (Polyester): rich colors, cost-effective, suitable for interiors and semi-exposed areas
• Anodizing: hard surface, metallic look, wear and corrosion resistant
• Wood-grain / stone-grain transfer: realistic decorative effect for interiors and furniture
• Brushed / mirror finish: unique metallic texture for high-end commercial spaces
Q: 7. Is the panel fire-resistant?
A: Yes. The panel is rated Class A fire-resistant (non-combustible) under GB 8624. Both the aluminum skins and honeycomb core are metal and will not burn or release toxic fumes. The product meets fire-safety requirements for building facades and public transport applications. Third-party fire test reports are available upon request.
Q: 8. What is the typical production lead time?
A: • Standard stock items: 3–5 working days
• Standard size, custom color: 7–15 working days
• Non-standard / special finish: 15–25 working days
Actual delivery time depends on order volume and current production schedule. Contact our sales team for a confirmed timeline. Rush orders may be accommodated.
Q: 9. How are the panels packaged and shipped?
A: Packaging: Each panel is separated by PE protective film, wrapped in corrugated cardboard or reinforced wooden crates with corner protectors.
Shipping:
• Domestic: dedicated logistics or LTL delivery with door-to-door service
• International: FCL/LCL sea freight (FOB/CIF terms), 20GP or 40HQ containers
Our standardized protective packaging keeps transit damage to a minimum. We assist with claims in the rare event of shipping damage.
Q: 10. How are honeycomb panels installed?
A: Installation methods:
• Curtain wall (dry-hang): aluminum brackets attached to the main structure - for building facades
• Adhesive bonding: structural adhesive or double-sided tape - for interior cladding
• Screw fixing: pre-drilled holes with countersunk screws - for ceilings and partitions
• Frame insertion: panels slotted into aluminum frame profiles - for doors, cabinets, displays
Facade projects should use certified professional installers. Interior applications can be handled by general fit-out teams, following the supplier's installation guide. We offer technical support.
