All-Aluminum Honeycomb Cabinet Board

A: An all-aluminum honeycomb panel cabinet board is a premium engineered panel specifically designed for kitchen cabinets, wardrobes, bathroom vanities, and custom furniture. It consists of two aluminum skin sheets (typically 0.5–1.0mm, 3003 or 5052 alloy) bonded to an aluminum honeycomb core, with solid aluminum edge profiles for a finished, durable edge. The panel is 100% metal - no wood, MDF, particleboard, or organic adhesives - making it completely waterproof, fireproof, and formaldehyde-free. This makes it the ideal solution for health-conscious homes, humid environments, and high-end commercial interiors.

A: Common specifications:
• Total thickness: 10mm, 15mm, 18mm, 20mm, 25mm (18mm is the most common for cabinet carcasses)
• Skin thickness: 0.5mm, 0.8mm, 1.0mm
• Core cell size: 6mm, 8mm
• Standard panel size: 1220×2440mm, 1220×2745mm, 1220×3050mm
• Edge profile: solid aluminum flat bar (20×18mm, 25×18mm) or C-channel wrapping
• Bonding: high-temperature hot-melt adhesive or 4047 brazing (premium option)
• Surface finishes: powder coating, PVDF, anodizing, heat-transfer wood-grain, PET film lamination, UV high-gloss
• Core density: 60–80 kg/m³
• Weight: ~4.5–7.0 kg/m² at 18mm thickness

A: Standard finishes and sizes: MOQ is 50–100 sheets (approximately 150–300 m²). Custom colors, wood-grain patterns, or non-standard sizes may require 100–200 sheets. Small trial orders of 10–20 sheets can be arranged for initial sampling and market testing, though at a higher unit price. MoQ varies by surface treatment line setup. Please specify your desired thickness, surface finish, size, and quantity for a precise quotation.

A: ① 100% Waterproof: unlike wood-based boards (MDF, plywood, particleboard), aluminum will never swell, warp, delaminate, or rot when exposed to water, steam, or high humidity - ideal for kitchens and bathrooms
② Zero formaldehyde, zero VOC: no wood, no glue, no paint emissions - safe for children's rooms, hospitals, and allergy-sensitive users; exceeds E0 and ENF standards
③ Fireproof: Class A non-combustible - will not burn or release toxic smoke; critical safety advantage over wood cabinetry
④ Anti-bacterial & easy to clean: non-porous surface resists mold, bacteria, and stains; wipes clean with a damp cloth
⑤ Pest & termite proof: insects cannot bore into or nest in aluminum - permanent protection in tropical climates
⑥ Lightweight & strong: 18mm aluminum honeycomb board weighs 30–40% less than equivalent MDF, yet provides superior screw-holding strength and load-bearing capacity
⑦ Long lifespan: will not age, crack, or degrade - outlasts wood cabinetry by decades; 100% recyclable
⑧ Dimensional stability: no seasonal expansion or contraction; doors and drawers maintain perfect fit year-round

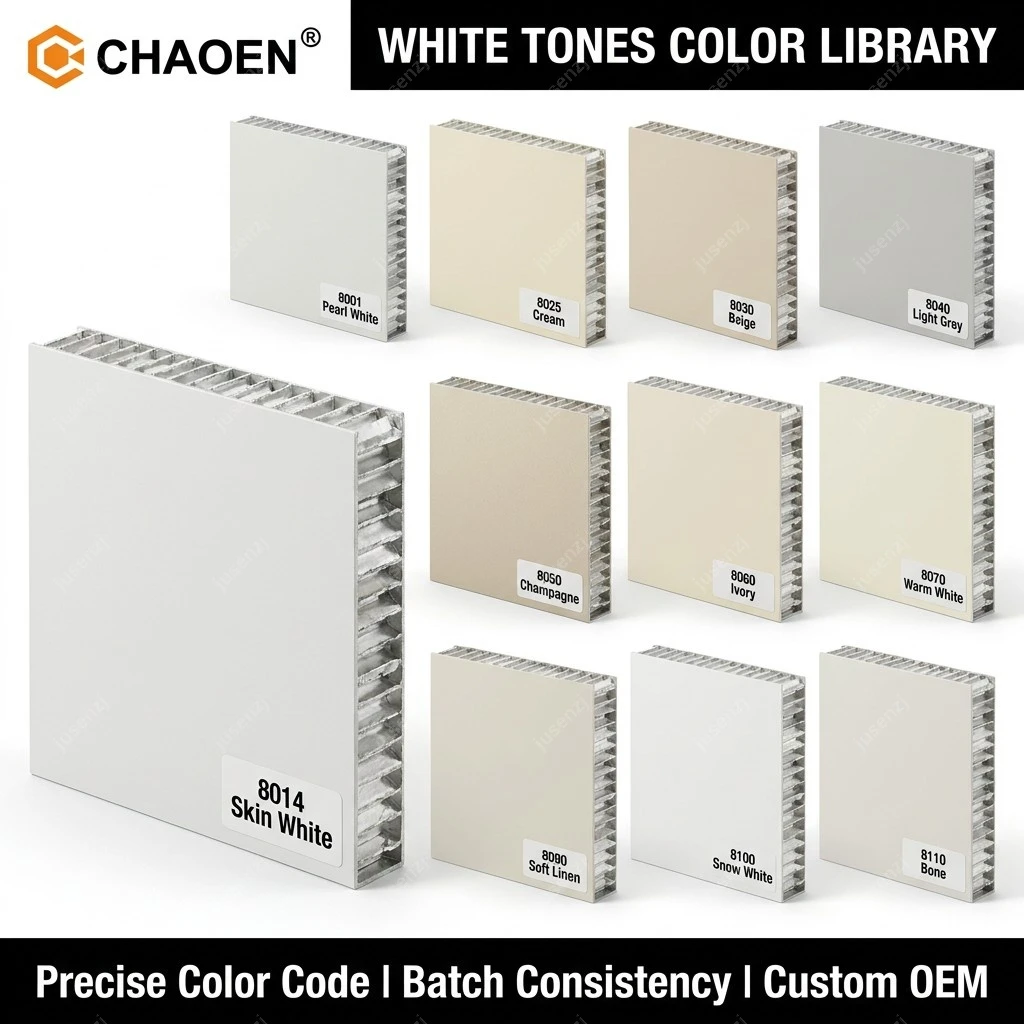

A: • Powder coating: matte or textured finish, excellent scratch resistance, 200+ RAL colors - most popular choice for solid-color cabinets
• Heat-transfer wood-grain: realistic wood patterns (oak, walnut, teak, ash, etc.) transferred under high temperature - visually indistinguishable from real wood veneer
• PET film lamination: high-gloss or super-matte PET film with anti-fingerprint coating - popular for modern handleless kitchens
• PVDF coating: premium weather-resistant finish (typically for semi-outdoor kitchen areas)
• Anodizing: metallic sheen, extremely hard surface - ideal for commercial and laboratory cabinetry
• UV high-gloss: mirror-like lacquer finish, cured under UV light for instant hardening
• Brushed metal: industrial-look linear grain texture for contemporary loft-style interiors
Custom colors and patterns matched to Pantone/RAL standards are available.

A: | Feature | All-Aluminum Honeycomb Board | MDF / Particleboard | Plywood |
|---------|------------------------------|---------------------|----------|
| Waterproof | ★★★★★ Fully waterproof | ★☆☆☆☆ Swells & delaminates | ★★☆☆☆ Warps over time |
| Fire resistance | ★★★★★ Class A non-combustible | ★★☆☆☆ Burns & produces toxic smoke | ★★☆☆☆ Burns |
| Formaldehyde | ★★★★★ Zero emission | ★★☆☆☆ E0/E1 rated but present | ★★★☆☆ Lower than MDF |
| Mold / Termite | ★★★★★ Immune | ★★☆☆☆ Susceptible | ★★★☆☆ Partially resistant |
| Weight (18mm) | ★★★★☆ ~6 kg/m² | ★★★☆☆ ~11 kg/m² | ★★★★☆ ~8 kg/m² |
| Screw holding | ★★★★☆ Excellent with inserts | ★★☆☆☆ Edge screws strip easily | ★★★☆☆ Moderate |
| Dimensional stability | ★★★★★ No movement | ★★☆☆☆ Expands with humidity | ★★★☆☆ Some movement |
| Lifespan | ★★★★★ 30+ years | ★★☆☆☆ 10–15 years | ★★★☆☆ 15–20 years |
| Recyclability | ★★★★★ 100% recyclable | ★☆☆☆☆ Difficult to recycle | ★★☆☆☆ Limited |
| Unit cost | ★★★☆☆ Higher upfront | ★★★★☆ Lower upfront | ★★★☆☆ Moderate |
While the upfront material cost is higher, the total cost of ownership is highly competitive when factoring in zero maintenance, longer lifespan, and no replacement costs.

A: Edge finishing is critical for cabinet aesthetics and durability. Our standard solutions
• Solid aluminum flat bar edging: 20×18mm or 25×18mm solid aluminum bars bonded and mechanically keyed into the panel edge, then painted/coated to match the panel surface. Provides a seamless, premium appearance.
• C-channel aluminum wrapping: U-shaped aluminum channel caps the raw honeycomb edge. Suitable for shelves and internal panels where the edge is less visible.
• PVC/ABS edge banding (economical): thermoplastic edge band applied with hot-melt adhesive; available in matching colors and wood-grain patterns.
• Welded & polished edge (premium): for anodized and brushed finishes, the edge bar is TIG-welded to the face sheet and polished to create a completely seamless edge with no visible joint line.
All edge solutions are waterproof and will not peel over time.

A: • Standard stock items (white/grey powder coat, 18mm, 1220×2440mm): 5–10 working days
• Standard size, custom color/finish: 12–18 working days
• Custom wood-grain patterns or special edge processing: 18–25 working days
• Large-volume project orders: production schedule confirmed upon PO review
Sample panels (300×300mm) can be dispatched in 3–5 days for color and finish approval. For large kitchen or wardrobe projects, we recommend allowing 3–4 weeks total from order confirmation to delivery.
9. How are cabinet boards packaged and shipped?
Packaging: Each board is covered with 50μm PE protective film on both faces. Boards are stacked with PE foam interleaving between each panel, a 5mm MDF cover sheet top and bottom, and secured with steel straps or PET bands. All four corners and edges are protected with heavy-duty cardboard or plastic corner guards.
Export packaging: ISPM 15 fumigated plywood crates with full peripheral protection. Optional vacuum packaging for LCL sea freight.
Shipping:
• Domestic: door-to-door trucking; same-city delivery available within 24 hours for stock items
• International: FCL 20GP/40HQ sea freight; DDP terms available for select markets; CIF/FOB standard
• Sample shipping: international courier (DHL, FedEx, UPS) for small-quantity samples
Boards are shipped flat, never on edge, to maintain perfect flatness.

A: Fabrication is similar to wood-based cabinet making with some specific considerations:
Cutting: Use a TCT (tungsten carbide tipped) saw blade with 80–100 teeth on a panel saw or CNC router. Cutting speed: 3,000–4,000 RPM. Apply light feed pressure to avoid burrs.
Drilling & hardware installation: Use standard 32mm system hole drilling patterns. For hinges and drawer slides, use self-tapping stainless steel screws or threaded inserts (Rivnut type). Hinge cup holes are pre-drilled with a 35mm Forstner bit.
Edge application: Solid aluminum edges are bonded with structural polyurethane adhesive and mechanically keyed. PVC edge banding uses standard hot-air edge banders.
Assembly: Cam-lock connectors, Minifix cams, and dowels work well. For heavy-duty commercial cabinets, we recommend threaded inserts with machine screws.
Door/drawer alignment: The panel's inherent flatness and stability make alignment easier and more permanent than with wood-based materials.
We provide complete fabrication guides, recommended tooling lists, and remote technical support for cabinet makers transitioning to aluminum.
